Sale!

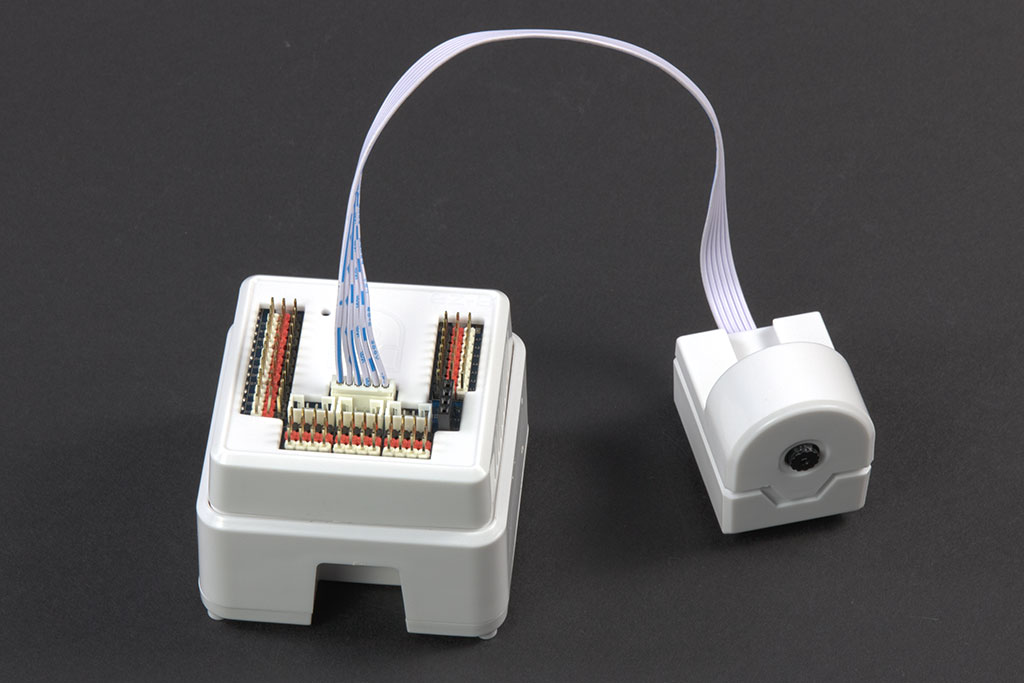

EZ-B v4/2 and Camera Combo

$220.47 $205.79

The EZ-B v4/2 WiFi Controller and Camera combo start customizing your robot with ez-bits, or create a robot from scratch. This is the brain and vision for your ezrobot! With the electronics protected by a stylish plastic shell, the ez-bv4 clips into your ezrobot Revolution chassis or custom robot. It is easily controlled over Wi-Fi using ez-builder software.

The included camera connects directly to the EZ-B v4/2 Wi-Fi Robot Controller. Give your ezrobot the gift of sight with machine vision. The ezrobot camera is capable of color tracking, objection recognition, facial recognition and more. This camera connects directly to the EZ-B v4/2 Wi-Fi Robot Controller.

The ez-bv4 boasts 200MHz of 32-bit processing (ARM Cortex-M3 & Microchip PIC32), 5 volt tolerant I/O, energy efficient digital switching power supply, Wi-Fi connectivity with security, embedded web server, amplified digital audio with speaker, 3 I²C ports, 3 x UARTs, 24 multi-use servo/digital/serial ports, 73 servos (Dynamixel & PWM), 8 analog ports, and integrated video, all in a tiny 2.1″ x 2.2″ size!

For ages 12+

Categories: ,

Simplicity and power.

The ez-bv4/2 can be controlled using the graphical ez-builder software on your PC or mobile device, without needing to program. The less time you need to spend with compilers, hardware programmers, and debuggers, the more time you can spend building and designing robotic projects!

Do you feel like you don’t know where to start with robotics? Or are you overwhelmed by words like “compiler” and “microcontroller”? If so, then the ez-bv4 is for you!

Exclusive to the EZ-B v4/2 Wi-Fi Robot Controller and plugs right in! This camera gives your robot the ability to track objects, colors, faces and more! The Camera Control within EZ-Builder connects to this camera through the EZ-B’s WiFi connection – no additional hardware needed. This camera produces a crisp 640×480 resolution at 20fps with zero latency and adjusting exposure.

Simply clip’n’play.

e z bits being manipulated and clipped together.

Customize your robot with ez-bits. All ezrobot Revolution parts include ez-bit connections. Simply slide the tab into the slot to establish a secure bond. The parts may be separated by sliding them apart. Multiple ez-bits can be connected together to make arms, legs, or anything else you dream up!

The ez-bv4/2 is your robot’s high tech brain.

Closeup view of e z b v 4.

At the heart of over 20,000 robots worldwide is the ez-bv4/2. The world’s most powerful and compact robot brain, suitable for all skill levels – from beginner to advanced. The stylish white plastic shell protects the speaker and electronics, with a speaker chamber for clear, enhanced audio. For advanced users, the ez-bv4/2 may be removed from its casing and mounted directly in your custom robot. [Learn More]

Features

  • Compact size (5cm x 5cm x 3cm)
  • Wi-Fi connectivity (ad-hoc/infrastructure/WEP/WPA/WPA2)
  • 220MHz 32-bit total processing with two 32-bit ARM Cortex processors
  • Small size (2.1″ x 2.2″)
  • Embedded web & telnet server
  • Energy efficient digital switching power supply
  • Re-settable fuse protection
  • Reverse polarity protection
  • Amplified speaker for streaming speech and music audio
  • 1 x real-time EZ-B v4 Camera port
  • 8 x 5 volt tolerant analog (ADC) ports
  • 24 x 5 volt tolerant digital ports (servos, PWM, and more)
  • Supports up to 73 servos (combining PWM and Dynamixel)
  • Dynamixel servo support
  • 3 x I²C ports
  • 3 x high speed UART ports
  • Battery and temperature monitor

Education in the classroom, and at home.

Children playing with robots at home, and at school.

In the classroom or at home, ezrobot Revolution has a big impact on STEM education. Learn about robots, and have fun doing it! With hundreds of tutorials, no questions are left unanswered. Personalizing your ezrobot with new behaviors will teach students how robots walk, see, hear and interact with their surroundings to solve problems using a combination of science, technology, engineering and mathematics. Visit the EZ-Robot School!

Live Streaming Video.

Robot vision with streaming live video

Give your robot or IoT project the gift of sight with live real-time streaming video. View the video on your mobile device or PC over the WiFi connection of the EZ-B.

Streaming Audio – Music, voices or sound fx.

Robot streaming audio of music, voices and sound fx

Robots need a voice! The EZ-B has a built-in speaker to stream audio in real-time from the PC or Mobile Device. Play music, sound effects or even text-to-speech through your robot or IoT project.

Software that’s easy to use.

A laptop with e z builder software in use.

If hardware is the heart of your ezrobot, then software is the soul. Introducing ez-builder, the world’s easiest, most powerful, and most scalable robotics software. ez-builder takes a productive and unique approach to programming your robot. Simply add behaviors such as camera tracking, speech recognition, Wii controllers, GPS, gait animator, and hundreds more!

Mobile control.

A tablet with ez-builder in use.

Use an Android or iOS mobile device with apps from our ez-cloud app store to control your robot or IoT project. Have an idea for a robot app? Create a robot app and share with it the world. ezrobot makes everyone an app developer!

ezrobots are visual learners.

The camera features advanced vision learning, detection and tracking abilities. Your ezrobot can interact with objects, colors, faces, motion, glyphs, and QR codes!

The future is green.

Roli Revolution robot holding the earth in his claws.

You care about energy consumption with electronics. That’s why ezrobot designed an innovative low energy digital switching power supply for our products. While most electronics dissipate heat to lower voltage, our products use an energy efficient power supply which generates practically no heat! Welcome to the future! 🙂

3D Printable Open Source Parts

A 3D printer.

The 3D printable CAD files of Revolution Robots and ez-bits are available in the CAD tab of each product, in the 3D Printing Section, or in the ez-builder software. 3D print your own robot parts or ask our community to 3D print the parts you choose. Create and share your own designs with other ezrobot users from around the world!
